Quality from World Class Technology.

Quality has always been our concern. By taking good care of all the work processes and of our World Class Technology, customers are able to be satisfied with the best quality product and services.

Fully equipped with world class high quality machinery, which has been carefully selected from the best of the world.

The machineries can be ensured of low hydrogen, extremely low oxide inclusions, fine uniform grain structure, consistency and uniformily of alloying elements' content and distribution. There are no gravity segregation, no cracks and shrinkholes and no inclusions. These bring about consistent dimension, straightness, weight, and smoothly surface.Our target is to meet the highest customer satisfaction along with delivery schedule on time.

We are absorbing high technology into our manufacturing process.

2 Sets tilting melting furnace with Electromagnetic Stirrers , ACD In-Line Degasser , AirSlip Hot Top Billet Casting System , Casting Control System , Spectrometer , Continuous Homogenizing Furnace .

The machineries can be ensured of low hydrogen, extremely low oxide inclusions, fine uniform grain structure, consistency and uniformily of alloying elements' content and distribution. There are no gravity segregation, no cracks and shrinkholes and no inclusions. These bring about consistent dimension, straightness, weight, and smoothly surface.Our target is to meet the highest customer satisfaction along with delivery schedule on time.

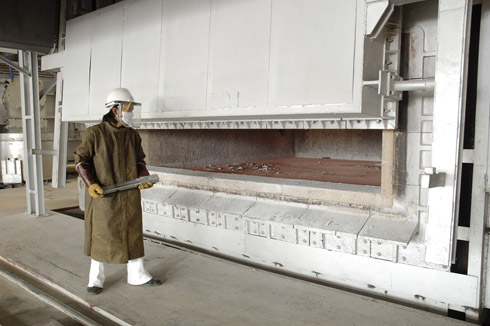

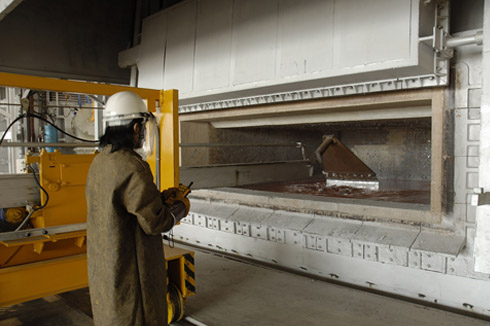

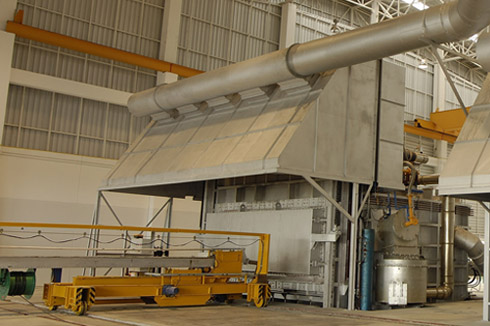

MELTING

High quality tilting furnace with Electromagnetic Stirrer, these can bring well consistency of alloying elements' content.

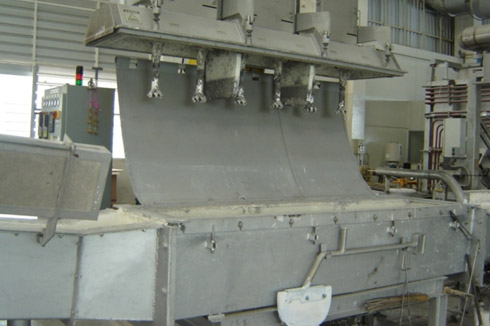

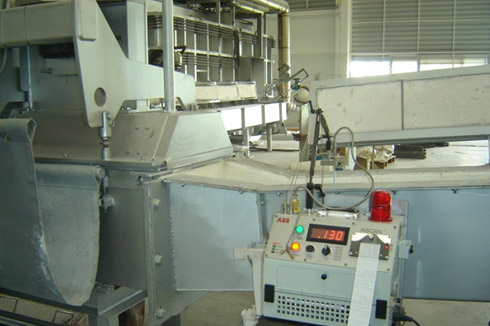

DEGASSING

STAS is proudly selected for our ACD In-line degassing process with rotary flux/gas injector (RFI), which provide efficient removal of hydrogen and reduce amount of chlorine gas to enhance high quality molten Aluminium with quality specifications that comply with world standards.

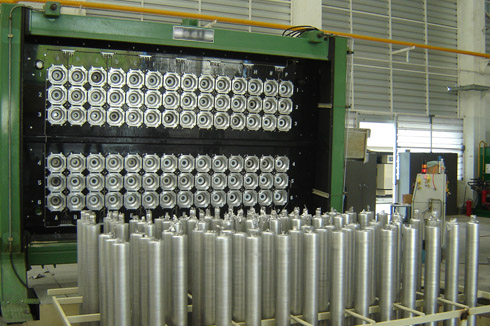

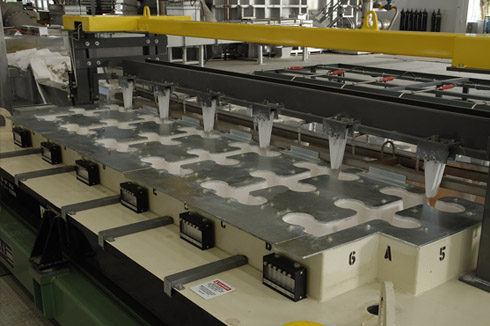

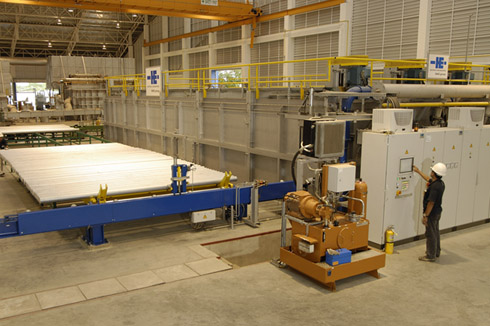

CASTING

Wagstaff AirSlip Casting technology performs most of the cooling through direct water quench, resulting in a shallow sump and very thin-shelled, uniform grained billet with excellent surface smoothness.

HOMOGENIZING

Every billet is subjected to exactly the same temperature cycle during heating, holding and cooling. This results in perfect consistency of homogenizing quality. We selected HERTWICH ENGINEERING, a company of the SMS group for our continuous homogenizing furnace, leaders and competence in the accepted worldwide modern Aluminium casthouse based on more than 30 years of experience.

Our Product

Our billets are produced to reach customer's greatest satisfaction and benefit.

According to the mission of "quality" , CAP gives the high emphasis on the employee development is every level together with much concern of quality product and environment friendly for the customer so far.

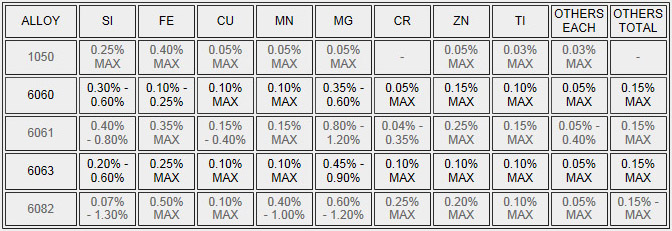

Standard Alloys and Chemical Composition Limits.

Other composition are available upon request.

Billet Dimension


Diameter
Diameter Tolerence

4.5" (114.3 mm)
+/- 1 mm

5" (127.0 mm)
+/- 1 mm

6" (152.4 mm)
+/- 1 mm

7" (177.8 mm)
+/- 1 mm


Lenght Upon request : Maximum Lenght 5,800 mm.


Quantity :
Minimum order 20 MT.

Packing :
Package in steel strapped bundles on wooden pallets
    Actual bundle size and weight depend on billet dimensions.
    For the packing of materials are taken into account the normal rules for safety during
    transportation and handling.



About Us

Cap Global Aluminium is an ISO 9001 company, working to produce aluminum alloy billets. Since 1990, having the most competitive price, we have satisfied customer needs.

To be able to meet the dramatically rising demand, we have expanded a new factory in 2008. By searching for the best machinery from all over the globe, We are proudly announce that our new plant is able to produce world class quality aluminum alloy billets from the state-of-art.
